Alume Half Moon

Home 9 LED Lumens 9 10000 to 19999 9 Alume Half Moon

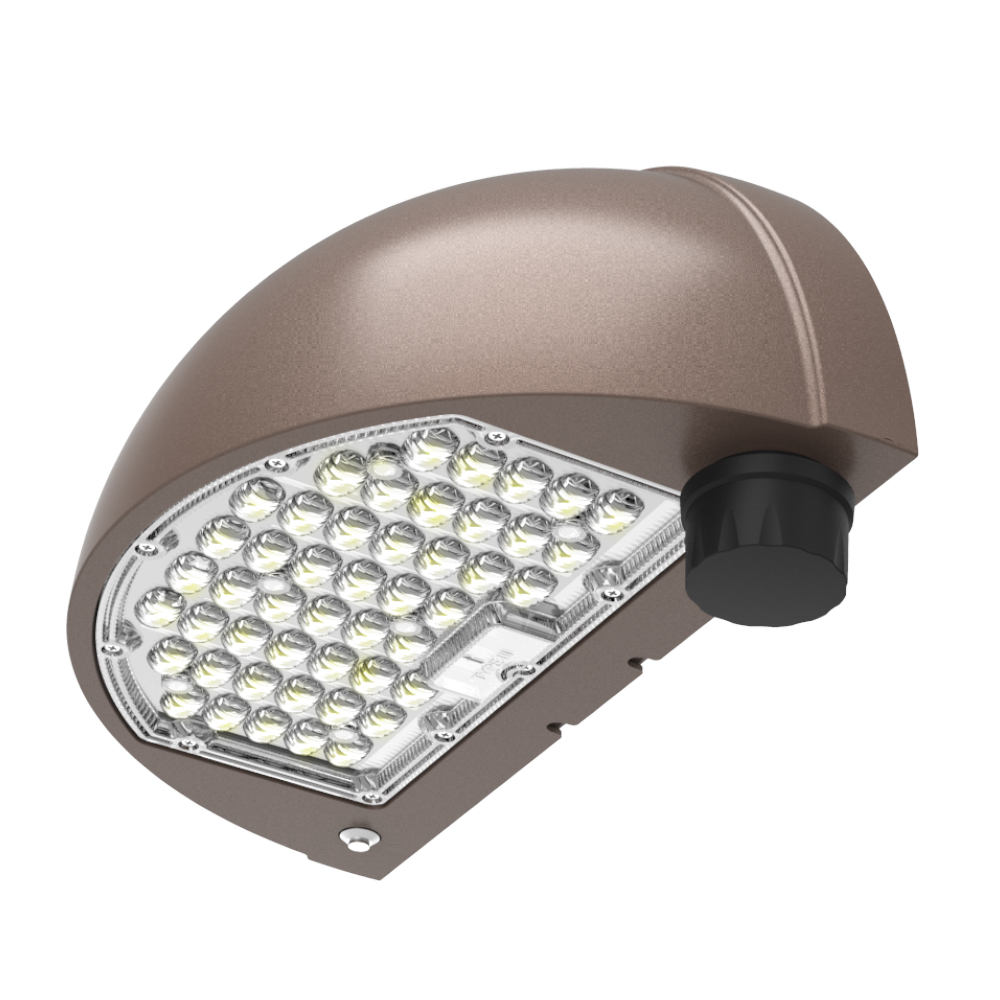

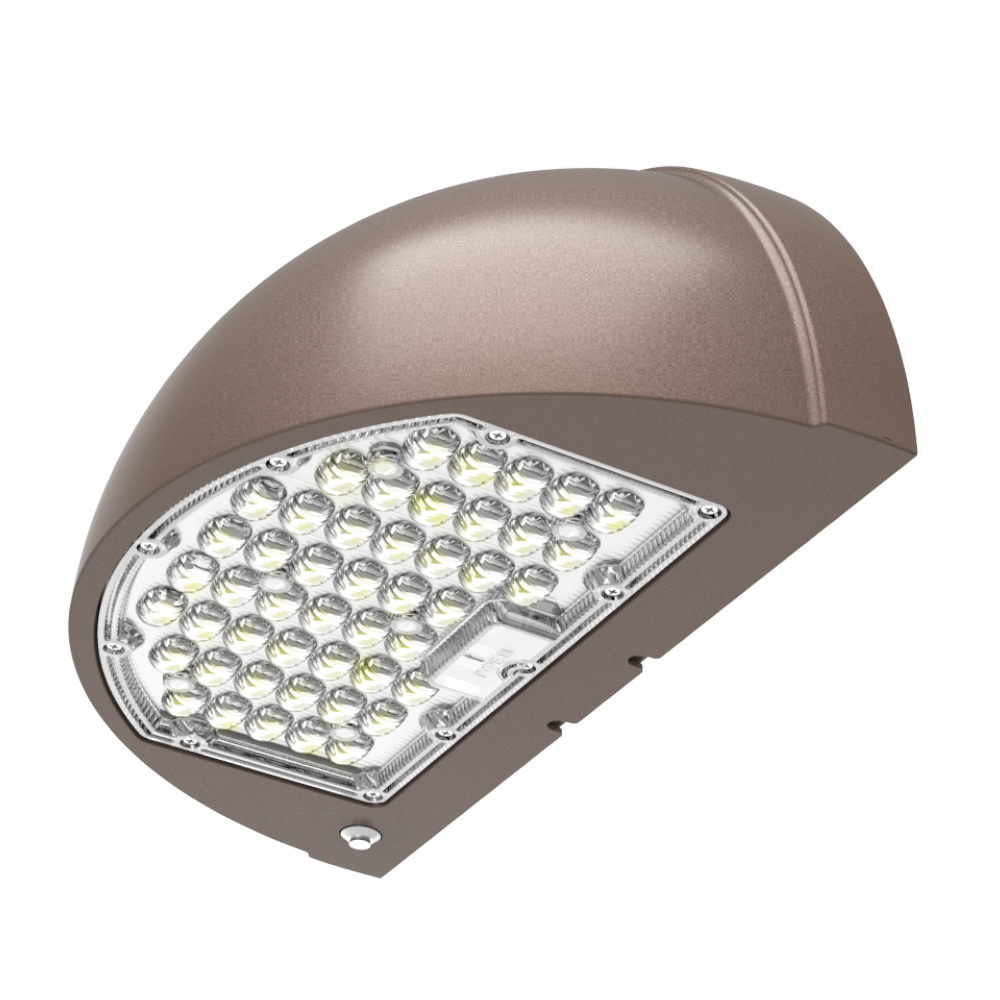

Alume WP LED half cutoff wall pack is designed to replace traditional MH / HPS wall packs using well sealed die-cast aluminum housings and glass lenses. The Alume is easy to install and has a dimming function available. Replace your MH / HPS wall packs up to 600W with the latest technology in lighting – the Alume WP!

Models

    • VVDWPHM80: 48W/64W/80W – 10800 Lm
    • Energy-efficient Philips Lumileds SMD LEDS with high efficacy >135 Lm/W
    • In stock and ships from several U.S. locations for quick delivery
    • Better visibility than HID with crisp, white light
    • Open frame design with a Type V 120 degree IES beam angle
    • Easy access to control switch for a range of CCT’s from 3000K to 5000K
    • Wattage selectable switch allows for a wide range of lumen outputs
    • Photocell switch to the controls off and on
    • Patented design with high quality components, excellent choice for retrofitting
    • National listing lab tested to IES standard
    • High lumen maintenance exceeds DOE requirements
    • Solid State with high-shock and vibration resistance
    • Aviation grade aluminum alloy die cast housing with bronze powdercoat finish
    • Chromate conversion coating for long lasting appearance
    • Streamlined housing, no rough edges or scraping, with 304 stainless steel hardware
    • Housing and driver compartment is one piece to maximize heat dissipation

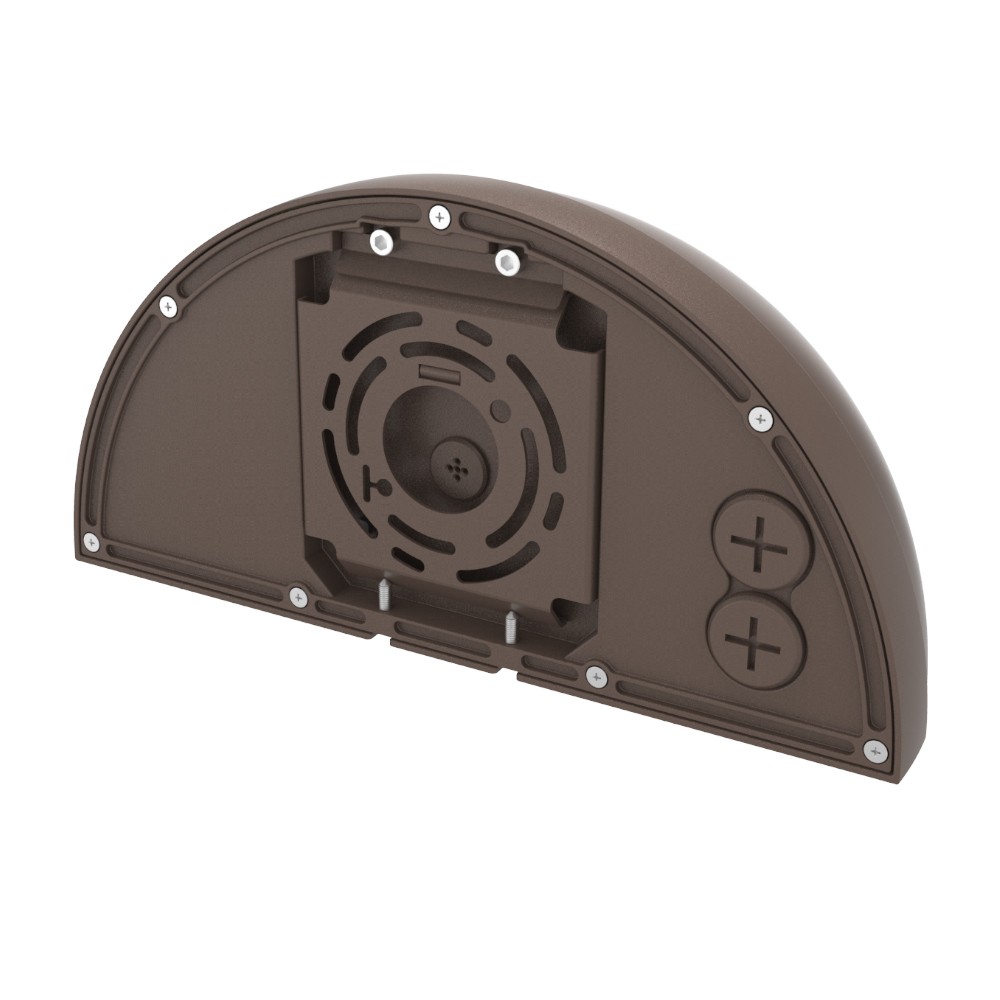

    • Wall mount with quick mount back plate for easy installation
    • 1/9th LED micro color binning enables tight color control
    • Hot color targeting ensures color is within ANSI bin compliance
    • Well distributed light using a patented reflecting system
    • Impact resistant PC lens over the LEDS with rubber grommet
    • Advanced, serviceable, constant current Sosen driver with 0-10V dimming
    • High power factor with IC controlled LED circuits and low THD driver
    • Low junction temperature for long life and low lumen depreciation
    • Instant illumination and restrike with no warm up or cold start issues
    • Contains no mercury, lead, infrared or UV radiation and cool to the touch
    • Commercial CRI: RA>72
    • Operating temperature: -30 to 45 degrees celsius
    • 100,000 hour LED life of maintenance-free, safe operation
    • IP65 rated for indoor or outdoor locations
    • Certifications: CE, RoHS, UL, cUL, DLC
    • 10 year limited warranty
