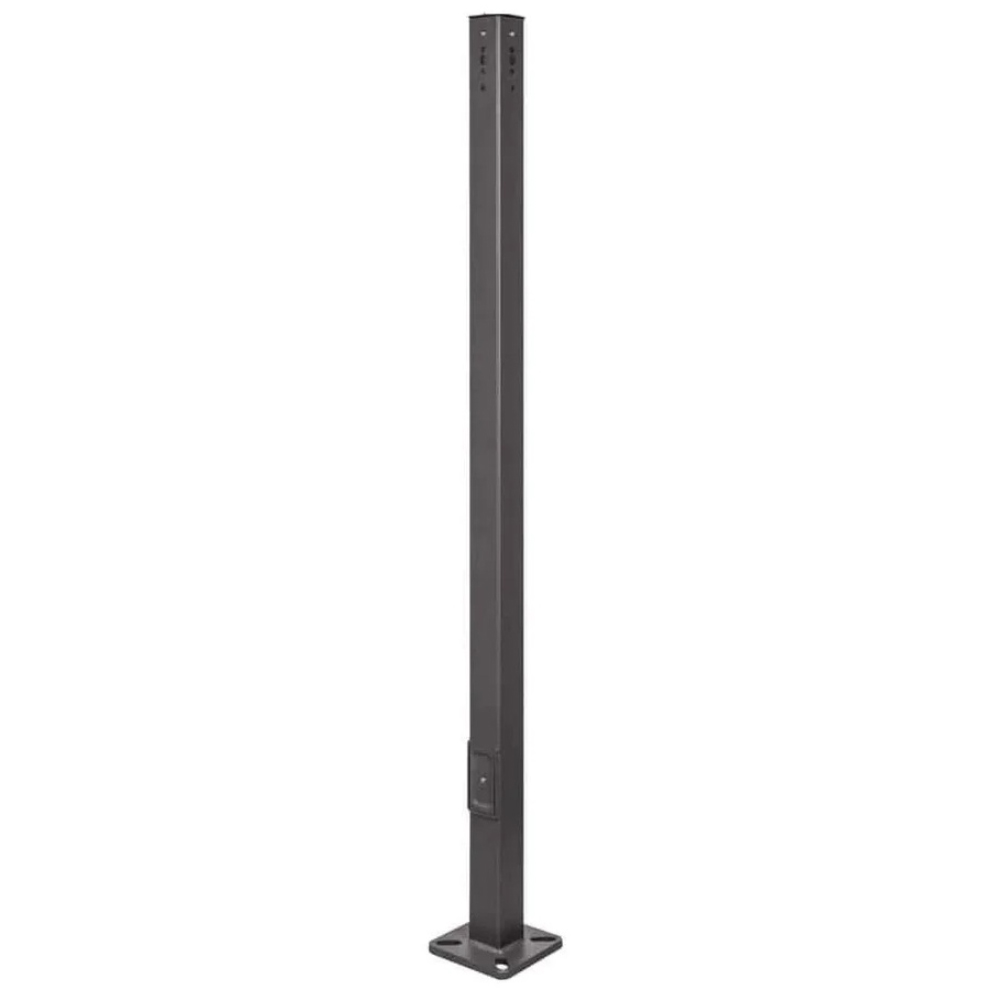

The Alume Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities. Mounting heights of 10’ to 30’.
Models
- VVDP20F4NSQ: Up to 20 foot, 4 inch square, 11 gauge
- VVDP25F4NSQ: Up to 25 foot, 4 inch square, 11 gauge
- VVDP30F5NSQ: Up to 30 foot, 5 inch square, 10 gauge
- Dallas, TX and Temecula, CA warehoused product with same day shipping
- Standard length poles Include 2 3/8” OD vertical tenon
- Polycarbonate top cover and hole plugs for unused drilling locations
- Poles are pre-drilled for side mount
- Drill templates available for a variety of luminaire mounting options
- Die cast aluminum reinforced cast iron hand-hole and cover with ground screw
- Anchor bolts are Included and sized based on selected pole size
- Pole includes a two-piece formed steel base cover
- Base cover is easily assembled and fitted over pole base
- Conforms to ASTM-A 500 Grade B: minimum yield strength of 46,000 PSI
- Galvanized steel with 11 gauge (.120˝) wall thickness
- Textured architectural polyester powdercoat finish
- Baked to ensure maximum paint adhesion, hardness and durability
- Custom length pole height cutting is available
- Paint matched pole accessories are available
