Alume PC

Home 9 LED Lumens 9 10000 to 19999 9 Alume PC

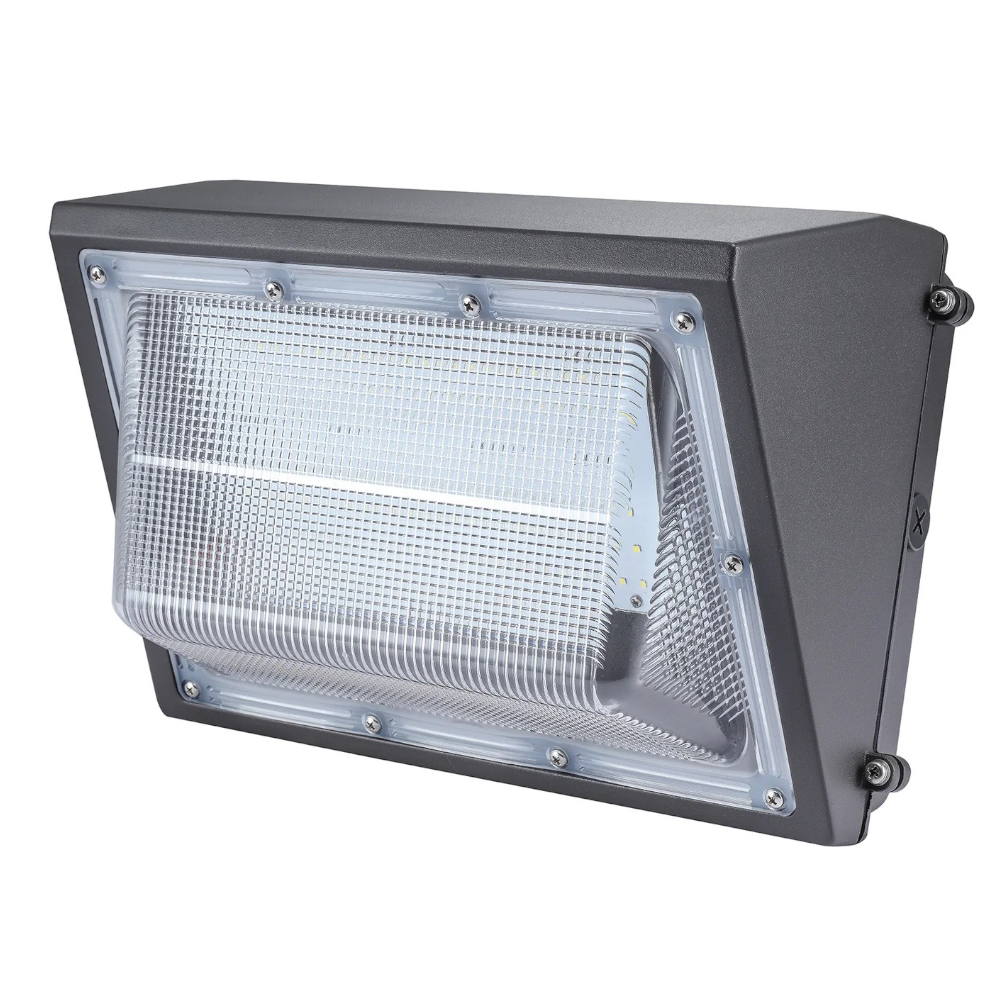

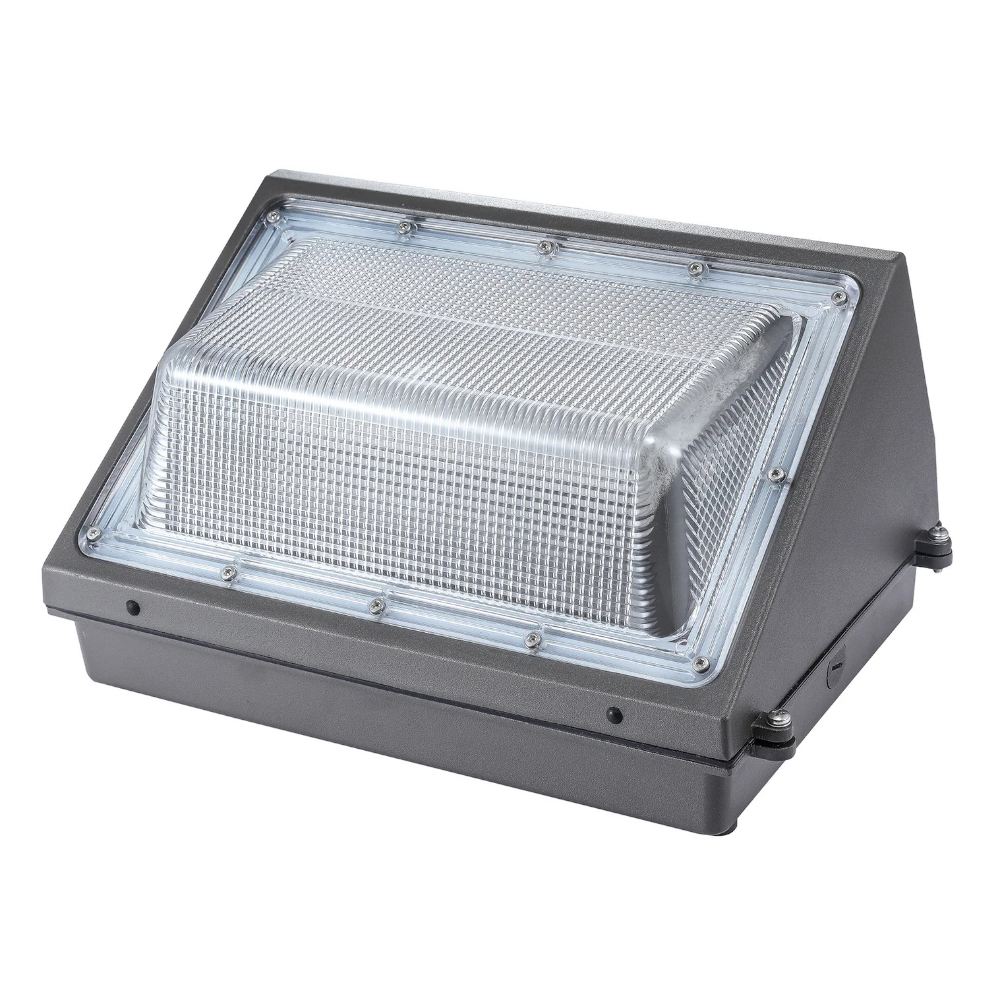

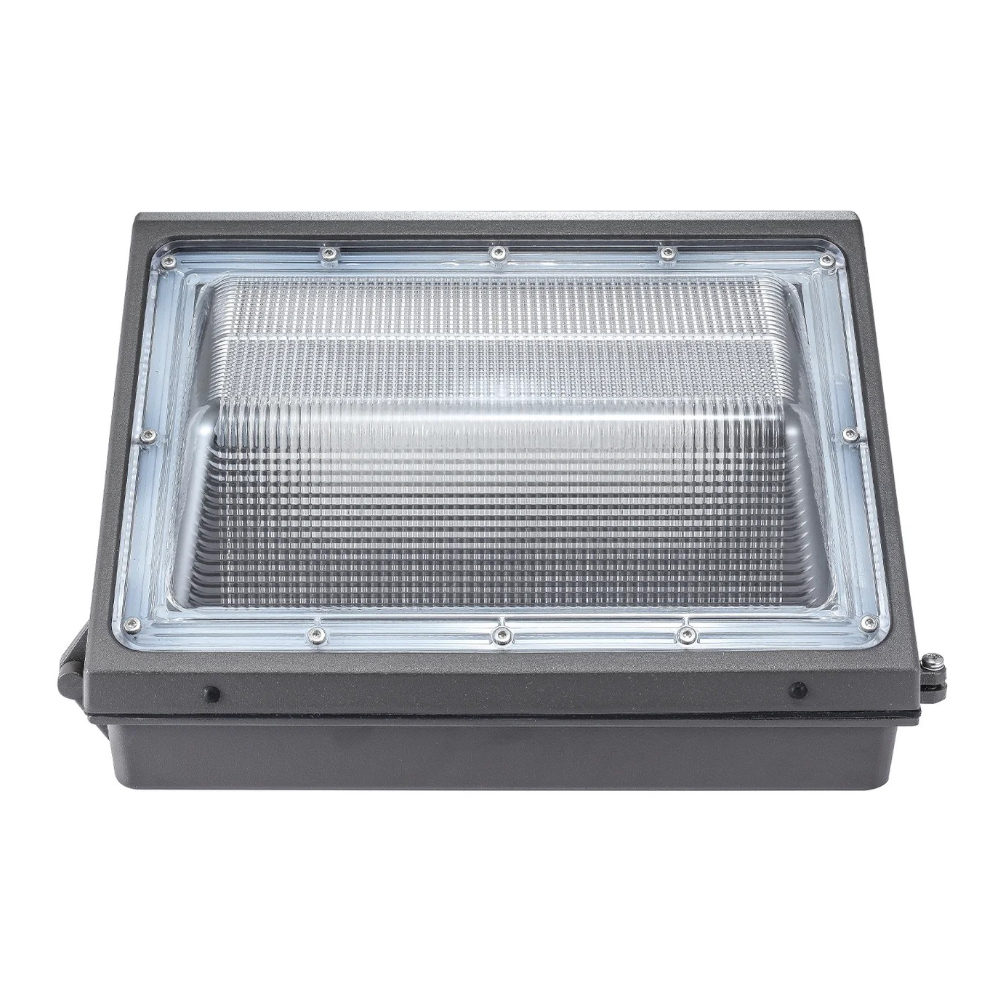

Alume PC LED semi cutoff wall pack is designed to replace traditional MH / HPS wall packs using well sealed die-cast aluminum housings and a polycarbonate lens. The Alume is easy to install and has a dimming function available. Replace your MH / HPS wall packs up to 600W with the latest technology in LED lighting.

Models

    • VVDPC40: 40W – 5330 Lm
    • VVDPC60: 60W – 7800 Lm
    • VVDPC80: 80W – 10400 Lm
    • VVDPC100: 100W – 13000 Lm
    • VVDPC120: 120W – 15600 Lm
    • VVDPC150: 150W – 19500 Lm
    • Energy-efficient Philips Lumileds SMD LEDS with high efficacy >130 Lm/W
    • In stock and ships from several U.S. locations for quick delivery
    • Better visibility than HID or fluorescent with crisp, 5000K white light
    • Open frame design with Type V IES beam angle
    • Patented design with high quality components, excellent choice for retrofitting
    • High lumen maintenance exceeds DOE requirements
    • Solid State with high-shock and vibration resistance
    • Aviation grade aluminum alloy die cast housing with bronze powdercoat finish
    • Chromate conversion coating for long lasting appearance
    • Streamlined housing, no rough edges or scraping, with 304 stainless steel hardware
    • Housing and driver compartment is one piece to maximize heat dissipation
    • 1/9th LED micro color binning enables tight color control
    • Hot color targeting ensures color is within ANSI bin compliance
    • Well distributed light using a patented reflecting system
    • CNC machined LED boards are flatness controlled to 0.1mm to speed up heat dissipation
    • Impact resistant polycarbonate lens over the LEDS with rubber grommet
    • Advanced, serviceable, constant current 0-10V dimmable Sosen driver
    • High power factor with IC controlled LED circuits and low THD driver
    • Instant illumination and restrike with no warm up or cold start issues
    • Contains no mercury, lead, infrared or UV radiation and cool to the touch
    • Commercial CRI: RA>72
    • Operating temperature: -24 to 45 degrees celsius
    • 100,000 hour LED life of maintenance-free, safe operation
    • IP65 rated for indoor or outdoor locations
    • Certifications: CE, RoHS, ETL, cETL, DLC
    • 10 year limited warranty
